Big size 1530 1325 cnc plasma cutting machine price india

Description

Details:

Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: Jiaxin
Voltage: 220V/380V
Rated Power: 8.5KW
Dimension(L*W*H): 2100*3005*1740mm
Weight: 1200kg
Certification: CE ISO
Warranty: 2 Years
After-sales Service Provided: Engineers available to service machinery overseas
Key word: cnc plasma cutting machine price india
Control system: Start
Cutting mode: Auto THC
Application: Sheet Metal Industry
Machine type: Gantry Type(Customized)
Color: required
Working voltage: AC 110V/220V/380V
model number: JX-1325/JX-1530 (as customer needed)
X,Y,Z axis driver: stepper motor and driver
warranty: 2 years

Video:

Description:

Main configuration and function introduction
# Strong drag chain--Traction and protection, smart high intensity, ametabolic rigidity, easy installation, use and reliable, easy yo tear open outfit.
# To protect the cable also make machine overall looks more beautiful
# Double heads--plasma cutter head can cut less than 40mm thickness( depends on power supply's current),
flame cutter head can cut 200mm thickness, can perfect meet your cutting demands
# Limit switch---Use it to control the workpiece movement or automatic feed, to avoid collision accident
# 24KGS guide rail--more stable
# Starfire cutting system and HYD auto arc voltage THC ---
The numerical control system with high disposes, the automatic striking arc, the performance is stable,Automatic height adjust system
---can according to your material planeness, cutting head can automatically stable, and fast adjust.
Plasma Source :
# American hypertherm power supply : 45A, 65A, 85A, 105A, 125A, 200A,
# Chinese LGK power supply: 63A, 100A, 160A, 100A, 300A
Application
They are widely used in ship, car, boiler pressure vessel, steel structure, plane, engineering machinery and other fields. They use flame cutting to cut carbon steel, use plasma to cut stainless steel, aluminum, copper and other metal plates. They are especially fit for irregular drawing batch cutting.

Images:

Big size 1530 1325 cnc plasma cutting machine price india

Recommend Products

2017 popular cnc flame cutting machine
- Condition: New
- Place of Origin: Shandong, China (Mainland)
- Brand Name: Jiaxin
- Model Number: JX-10A
- Voltage: Machine 220V, plasma 380V
- Rated Power: 500W/800W/1000W
- Dimension(L*W*H): 3*6
- Weight: 1500kg
- Certification: CE & ISO
- Warranty: 12 months
- After-sales Service Provided: Engineers available to service machinery overseas
- Name: cnc flame cutting machine
- cutting mode: plazma\flame cutting machine
- Drive motor: China stepper motor or Japan servo motor
- gas or plasma torch number: single , or multihead
- Plasma generator /plasma source: CHINA famous brand HUAYUAN LGK series , or USA brand
- Machine voltage: 220V/380V/415V /440V ,can be customize
- cutting gas: oxygen/oxyfuel +Propane acetylene ; press air
- THC sensor: Automatic or Mechanical
- procesing material: stainless , ion , cooper , mild /high carbon steel ,galvanized sheet
- Option: Straight cutting torch , bevel cutting torch

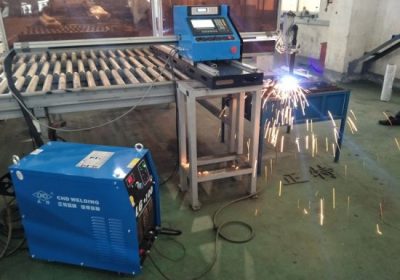

hot selling factory price small bench plasma cnc cutter
