CE standard flame and plasma cutting portable plasma cnc machine

Details:

• Condition: New
• Place of Origin: Shandong, China (Mainland)
• Brand Name: Jiaxin
• Voltage: 380V
• Rated Power: 8.5KW
• Dimension(L*W*H): 3050x290x230mm
• Weight: 75 KG
• Certification: CE ISO
• Warranty: 2 Year
• After-sales Service Provided: Engineers available to service machinery overseas
• Keywords: plasma cnc machine
• Power Supplier: 63A
• Supplier: Huayuan
• Driving system: stepper motor
• Cutting speed: 1-10 m/min

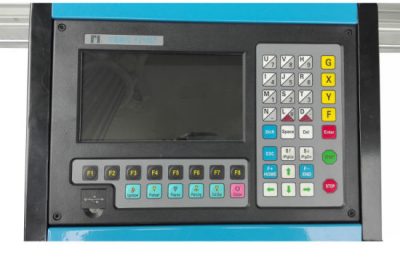

• Control system: Starfire+THC
• Rail: round rail
• Cutting thickness: 0- 15 mm
• working area: 3000*6000mm

Video:

Description:

CNC flame and plasma cutting machine is a representing machine. This machine is of beautiful appearance and shape with low center of gravity and smooth operation. The machine can be used with different CNC system from home and abroad and can be configured with all kinds of numerical control system to be installed in any model of the plasma cutting system and used in the cutting with 3-10 meters range.
Frame
1. The cross-beam employs the wide box type welded structure, which presents the features of overall rigidity, high strength, each guide rail surface being precisely machined to ensure the correct positioning of the moving parts.
2. The double drives at both ends of the frame adopt three point-positioning for stable gravity center to ensure the good dynamic equilibrium.
3. All the welded components were stress relieved to effectively prevent the structural distortion.
Guide rail
4. The longitudinal guide rail is made of high strength heavy rail with the top and both sides precisely machined by special grinding machine.
5. The horizontal guide rail is made of precision cold drawn material and precisely machined before use.
Transmission

6. The vertical and horizontal transmission uses the gear and rack engagement working together with imported precision planetary reducer featured with high output torque, low noise, long service lubrication so as to realize the high precision locating transmission.
7. The vertical and horizontal output gears are (carburized and quenched) hard tooth surface gears precisely ground.
8. Therefore, the transmission mechanism of the machine is a long-life structure.
Driving system
9.The Matsushita brand AC servo drive system is adopted to allow for stable and reliable operation and high precision control.
Gas line
10.All gas lines are controlled by the central gas supply system, equipped with solenoid valve, pressure gauge, regulating valve, easy for intelligent control.
11.The gas filter is provided at the gas line front end to prevent debris from entering the gas lines.
Cutting torch
12.The cutting torch assembly consists of the mobile seat, lifting device, motor, cutting torch, holder, gas valve and hose etc.
13.The torch lifting is driven by the motor.
14.Each cutting torch is equipped with integrated check valve and flame-out tube as the flareback arrester.
15.The reasonable gas line design and reliable safety device allows the machine for long term and reliable operation.
Automatic ignition
16.The cutting torch is featured with continuous pulse automatic igniter for automatic ignition. After the torch is lit, the igniter will be automatically closed.
