Light Duty Gantry CNC Plasma Cutting Machine

Description

Details:

Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: JIAXIN
Voltage: 220V/380V
Rated Power: Customized, 50kw
Dimension(L*W*H): 6000*4000*1500mm
Weight: 4000kgs
Certification: CE Certificate, CE/ISO
Warranty: One Year
After-sales Service Provided: Engineers available to service machinery overseas
Name: Light Duty Gantry CNC Plasma Cutting Machine
Color: Customized for agent
Type: according your need
Auto-precision: ± 0.5 mm
Main electric components: Siemens
Quick travel speed: 20 - 6000mm
keywords: Small flame/plasma cutting machine
CNC system: China START

Video:

Description:

This portable cnc cutting machine is with plasma and flame cutting for steel plate cutting. Working size can be customized upon requirements.
Easy to operation,compact structure and low cost.
Widely used in automobile, shipbuilding, engineering machinery, agricultural machinery, suitable for carbon steel (flame cutting), and stainless steel.
Application:
1. This product is an economic, easy-to-use operation and maintenance type CNC flame &plasma cutting machine which is devoted to many kinds of metal sheet cutting.
2. To achieve a variety of metal materials by any graphic material cutting, cut roughness up to 25, after cutting the cut surface under normal circumstances does not require processing on the surface.
3. With a high degree of automation, easy-to-use, high accuracy, high reliability and low price, operation, maintenance etc is very simple and widely applicable to the manufacture of machine tool, shipbuilding, pressure vessel, engineering and mining machinery, electric power, bridge building and steel industries etc.
Features:
1. Good Working stability, high frequency interfere effectively plasma, lightweight portable;
2. Support two cutting ways of flame and plasma;
3. Economic benefits, the structure and design is contracted. it adopts humanistic positive man-machine conversation and operate easily;
4. Cutting has high quality, high effect level, high precision;
5. Programmable cutting arbitrary shape parts of line and arc;
6. Dynamic and static graphic display, easy to learn. Can convert CAD file to program file in computer, through USB flash drive transmits to machine to realize cutting all kinds’ graphs. And also can program and operate directly on the machine.
7. English and Chinese interface can free to convert;
8. Pre-sale will train and after-sale will track service.

Images:

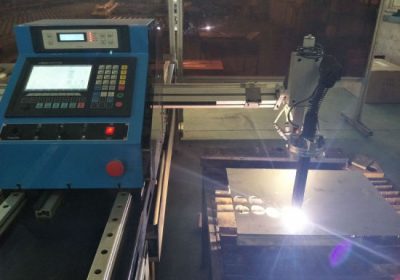

Light Duty Gantry CNC Plasma Cutting Machine
