Made in China 1500*3000mm dragon plasma cutter&cnc plasma table

Description

Details:

Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: Jiaxin
Model Number: JX-1530
Voltage: 380V
Rated Power: 5.5kw
Dimension(L*W*H): 3670*1960*1600mm
Weight: 1500kg
Certification: CE
Warranty: One Year
After-sales Service Provided: Engineers available to service machinery overseas
Name: plasma cutter&cnc plasma table
Working area: 1500*3000mm
Controlling systerm: Beijing start control system
Motor: Stepper motor
Rails: Good rails
Inverter: Fuling inverter
Table: Blade table or sawtooth table
Table structure: General or heavy duty frame
Supplier: Hua yuan or hypertherm supplier
Software: Fastcam Software

Video:

Description:

Gantry Type CNC Plasma and Flame Cutting Machine, Plasma and Flame Plate Cutter Gantry Type.
We named this kind of machine as CNCSG. It is heavy-duty, durable with high speed and accuracy.

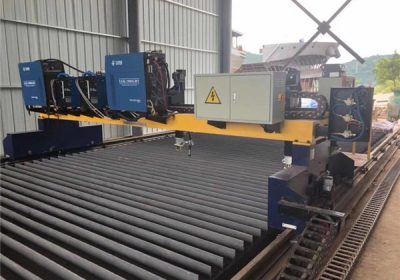

CNC gantry type cutting machine
Heavy-duty and Durable
U Gantry and box type welded structure, have been annealed, long service life, working steady and durable in heavy load and high duty cycle.
U Gapless gearing transmit, stable and smooth running in high speed, smart, fine surface quality.
U Integrated auto-ignition with automatic height controller, keep the height between the cutting torch and work piece, realizing the best cutting quality.
U Able to process multi-torch mirror image cutting or synchronism cutting, improve cutting efficiency U Low use and maintenance cost, dispense with special maintenance, friendly operator interface, easy to learn U Utility CNC System, reliable and safe, Automatic programming, Optimization nestling and piercing path, Save steel effectively

Images:

Made in China 1500*3000mm dragon plasma cutter&cnc plasma table
